Custom Charts with Nested Data

The following step-by-step instructions show how to build a custom chart that expects nested data.

This example starts with flat data from the default stream, fetched and prepared using SQL, and reshaped and rendered using JavaScript. Learn more about data preparation and reshaping for custom charts.

Use Case

Build a custom Sunburst chart to visualize how query execution time is distributed across different organizations and search types. The goal is to understand:

• Which organization generates the most query load
• How that load is split across dashboards, logs, and alerts
• Whether certain usage patterns need optimization or resource allocation

Step 1: Understand the Ingested Data

OpenObserve stores ingested data in a flat structure.

Example: In the following dataset, each row represents a single event or query log, with its own timestamp, organization ID, search type, and query duration.

  { "_timestamp": "2025-05-12T09:00:00Z", "organization_id": "test", "search_type": "logs", "query_duration": "10h 51m 13s" },
  { "_timestamp": "2025-05-12T09:01:00Z", "organization_id": "production", "search_type": "alerts", "query_duration": "11h 46m 00s" },
  { "_timestamp": "2025-05-12T09:02:00Z", "organization_id": "test", "search_type": "alerts", "query_duration": "7h 44m 21s" },
  { "_timestamp": "2025-05-12T09:00:00Z", "organization_id": "test", "search_type": "logs", "query_duration": "0h 58m 02s" },
  { "_timestamp": "2025-05-12T09:02:00Z", "organization_id": "production", "search_type": "logs", "query_duration": "11h 24m 37s" },
  { "_timestamp": "2025-05-12T09:00:00Z", "organization_id": "production", "search_type": "alerts", "query_duration": "8h 25m 29s" },
  { "_timestamp": "2025-05-12T09:01:00Z", "organization_id": "production", "search_type": "alerts", "query_duration": "2h 30m 01s" },
  { "_timestamp": "2025-05-12T09:00:00Z", "organization_id": "production", "search_type": "alerts", "query_duration": "4h 10m 21s" },
  { "_timestamp": "2025-05-12T09:02:00Z", "organization_id": "production", "search_type": "logs", "query_duration": "4h 40m 34s" },
  { "_timestamp": "2025-05-12T09:01:00Z", "organization_id": "test", "search_type": "dashboards", "query_duration": "3h 33m 28s" }

Note: To view the ingested data, go to the Logs page and run the query against the stream for a selected time range.

Step 2: Identify the Expected Data Structure

Before starting, identify what structure the chart expects.

Sunburst chart expects data to be in nested format or parent-child hierarchy. Each parent (organization_id) should contain its children (search_types), each with a value.

Step 3: Fetch and Prepare the Data

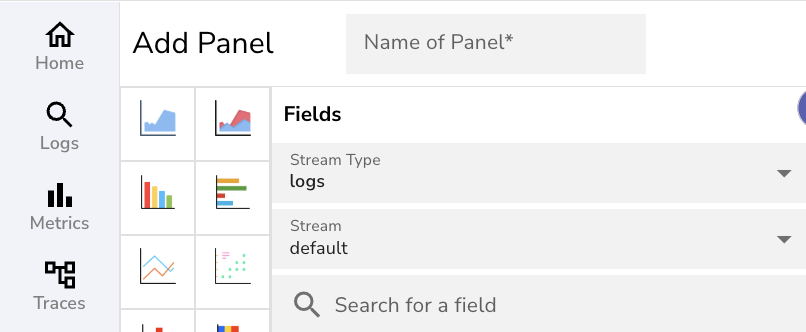

In the Add Panel page, under Fields, select the desired stream type and stream name.

Write a SQL query in the Query Editor to fetch and prepare the data:

• Filter out incomplete or irrelevant entries.
• Convert duration strings (e.g., 9h 44m 02s) into numeric values (e.g., 35042 seconds).
• Aggregate values for matching categories (e.g., same organization_id and search_type).
• Ensure consistent field names so the reshaping logic works without errors.

SQL Query

SELECT
  organization_id,
  search_type,
  SUM(
    split_part(query_duration, 'h', 1)::int * 3600 +
    split_part(split_part(query_duration, 'h ', 2), 'm', 1)::int * 60 +
    split_part(split_part(query_duration, 'm ', 2), 's', 1)::int
  ) AS total_seconds
FROM
  "default"
WHERE
  query_duration IS NOT NULL
  AND organization_id IS NOT NULL
  AND search_type IS NOT NULL
GROUP BY
  organization_id,
  search_type;

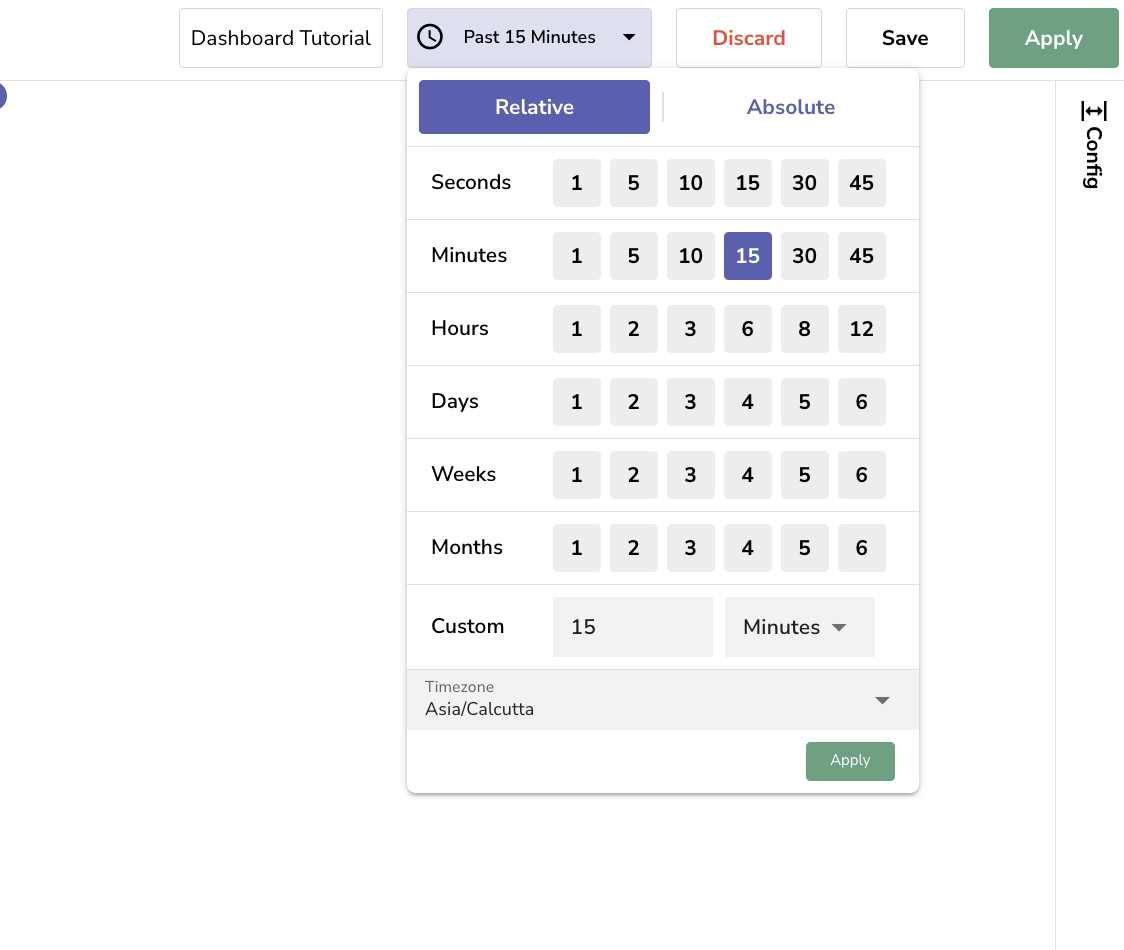

Select a time range to fetch the relevant dataset for your chart.

Expected Query Result

data = [[
  {
    "organization_id": "test",
    "search_type": "logs",
    "total_seconds": 42555
  },
  {
    "organization_id": "production",
    "search_type": "alerts",
    "total_seconds": 96711
  },
  {
    "organization_id": "test",
    "search_type": "alerts",
    "total_seconds": 27861
  },
  {
    "organization_id": "production",
    "search_type": "logs",
    "total_seconds": 57911
  },
  {
    "organization_id": "test",
    "search_type": "dashboards",
    "total_seconds": 12808
  }
]];

Note: OpenObserve stores the result of the query in the data object as an array of an array.

Step 4: Inspect the Queried Data

Inspect the queried dataset before reshaping:

console.log(data);
console.log(data[0]);

This helps confirm:

• If the field names are correct
• If there is any inconsistencies or formatting issues
• If the data requires any preparation before reshaping

Step 5: Reshape Data Into Nested Structure

In the JavaScript editor, write a script to convert the queried result into a nested array suitable for a Sunburst chart:

const grouped = {};

data[0].forEach(row => {
  if (!grouped[row.organization_id]) {
    grouped[row.organization_id] = {
      name: row.organization_id,
      children: []
    };
  }
  grouped[row.organization_id].children.push({
    name: row.search_type,
    value: row.total_seconds
  });
});

const treeData = Object.values(grouped);

Note: In the option object, use the reshaped treeData array as the data field in your chart configuration.

Step 6: Render the Chart

Construct the option object in the JavaScript code to define the reshaped dataset and configure how the chart should appear.

option = {
  tooltip: {
    trigger: 'item',
    formatter: '{b}: {c} seconds'
  },
  series: [{
    type: 'sunburst',
    radius: [0, '90%'],
    sort: null,
    label: {
      rotate: 'radial'
    },
    data: treeData
  }]
};

Note: Further, you can enhance the chart with event handlers and reusable functions.

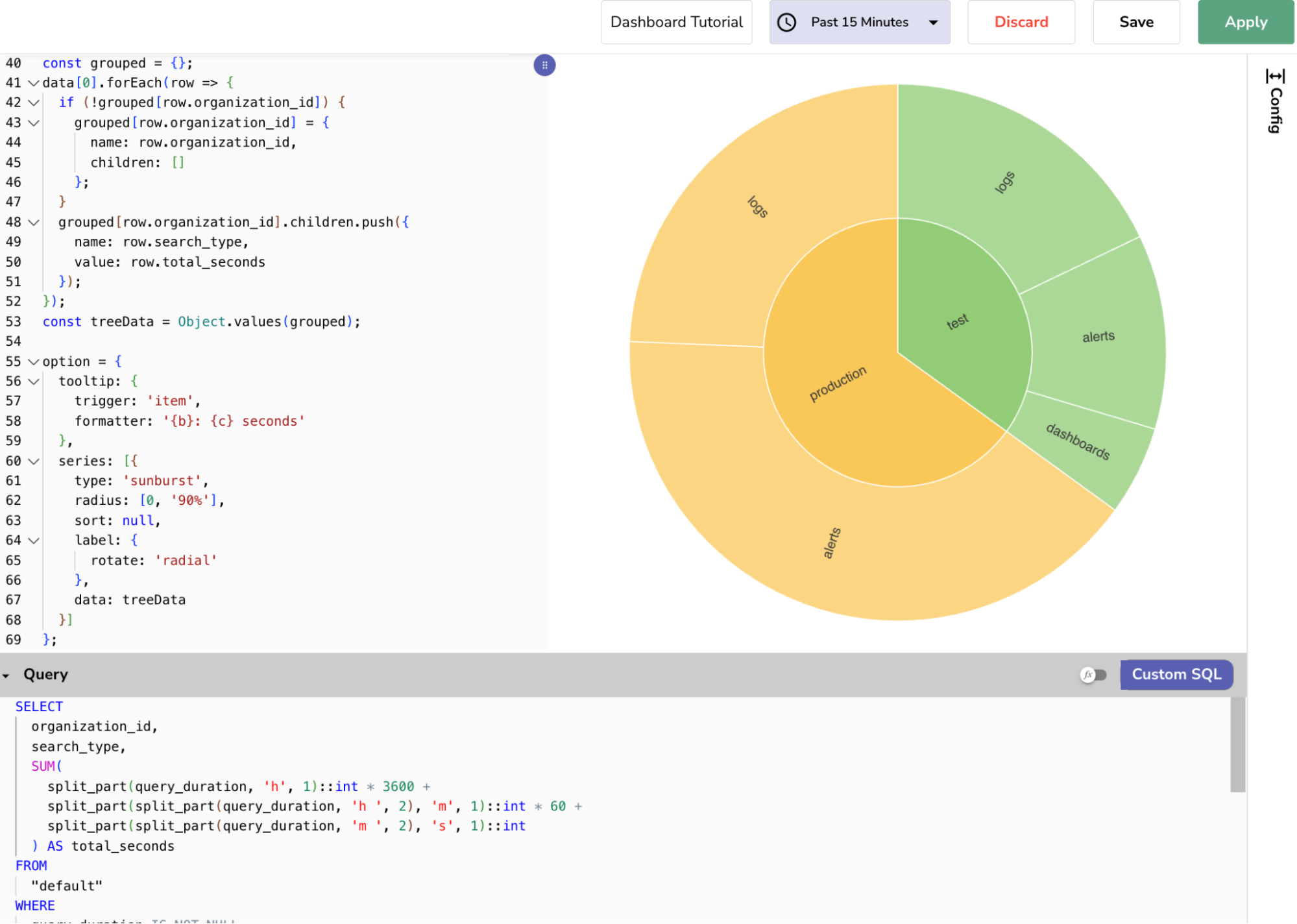

Step 7: View Results

Click Apply to generate the chart.

If the query and JavaScript logic are correct, the chart appears in the preview area.

Understand the Chart

The above Sunburst chart shows a breakdown of total query time across organizations and their search types.

• The inner ring shows the organizations (test, production).
• The outer ring shows search types (logs, alerts, dashboards) under each organization.
• The size of each slice reflects the total duration (in seconds) for that group, larger slices mean more total query time.
• Hover over any slice to see a tooltip showing the exact total duration in seconds.

Use the chart to identify which organizations or search types consume the most query time. Large slices may indicate areas that need performance tuning or more resources.

Troubleshoot

Use the following guidance to identify and fix common issues when working with custom charts:

1. No data found
Cause: The SQL query did not return any results.
Fix:

• Confirm the selected time range includes data.
• Check that the stream name and field names are correct.
• Run the query in the Logs view to verify that results are returned.

2. Uncaught ReferenceError: option is not defined
Cause: The chart configuration was not defined correctly.
Fix:

• Ensure option = {...} is defined at the end of your JavaScript.
• Do not rename the option variable or wrap it in a function or condition.

3. Unsafe code detected: Invalid JavaScript syntax.
Cause: There is a syntax error in your JavaScript.
Fix:

• Check for missing or extra commas, brackets, or quotation marks.
• Open your browser's developer console to locate the error.
• Use console.log() to test your script step by step.

4. Chart Not Rendering:
Cause: The query returned data, but the chart did not render.
Fix:

• Use console.log(data[0]) to confirm that the dataset is not empty.
• Make sure the field names in your script match the query output.
